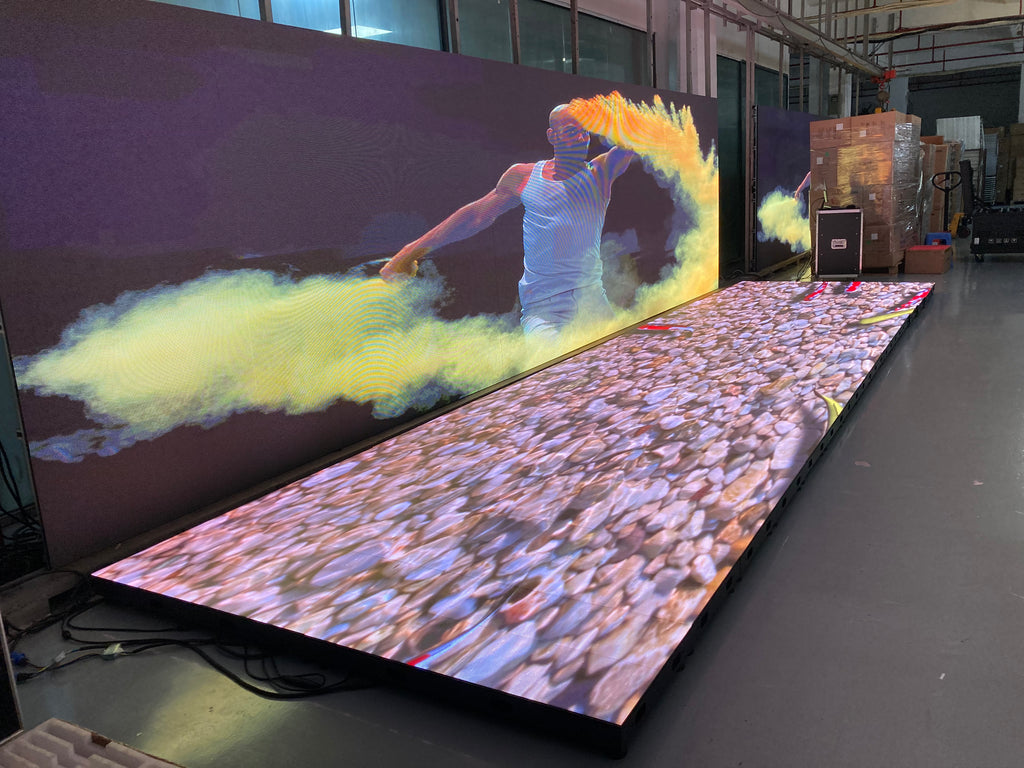

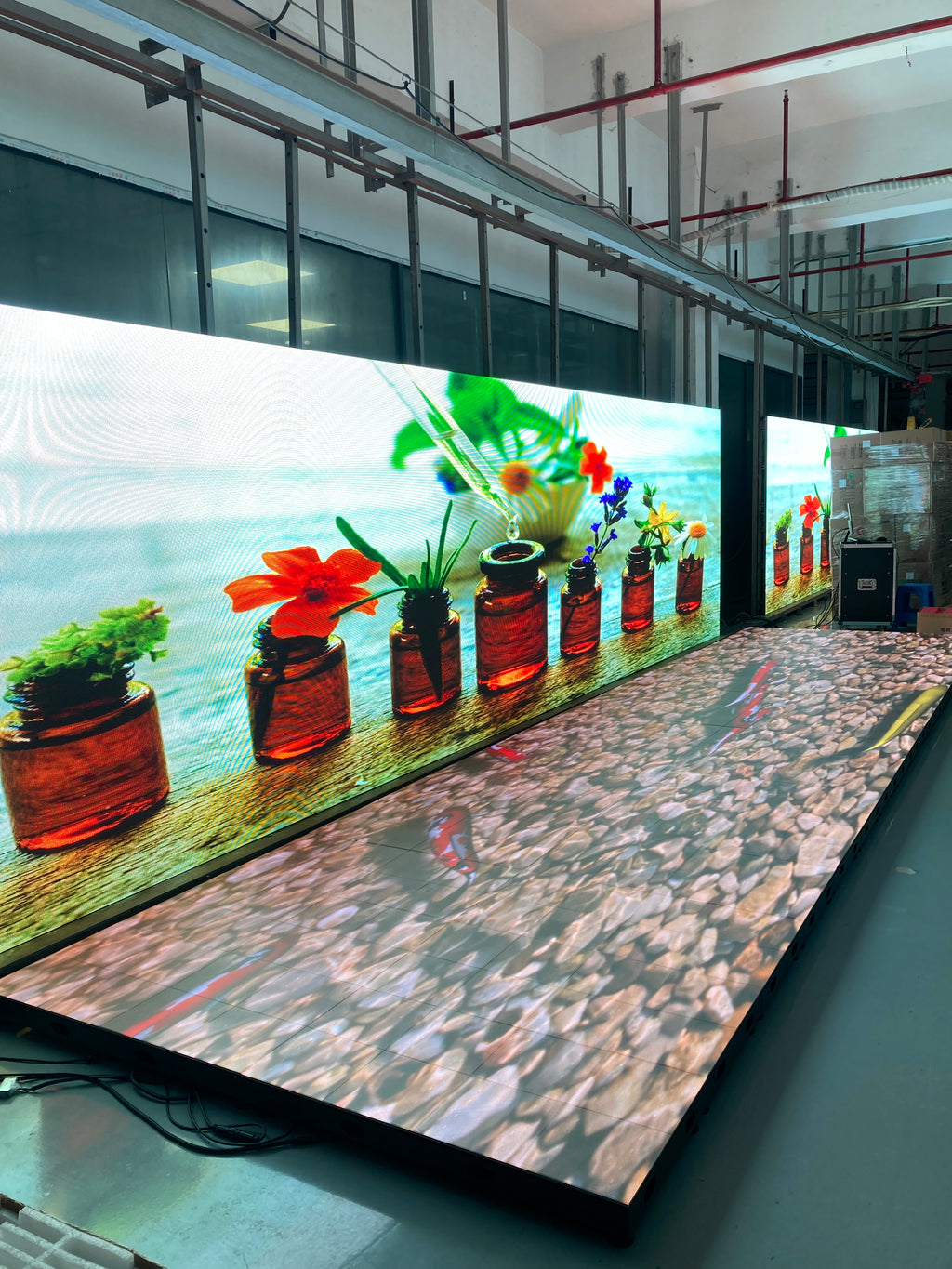

Interactive & Non-Interactive LED Floor Tile Display | P2.5 / P2.976 / P3.91 | 300–2000 nits | 3840Hz

LED floor tile displays are redefining immersive experiences across entertainment, commercial, and exhibition environments. Dotcom LED offers both interactive and non-interactive floor display systems — engineered for durability, visual excellence, and seamless integration into any high-impact installation.

Pixel Pitch & Cabinet Specifications

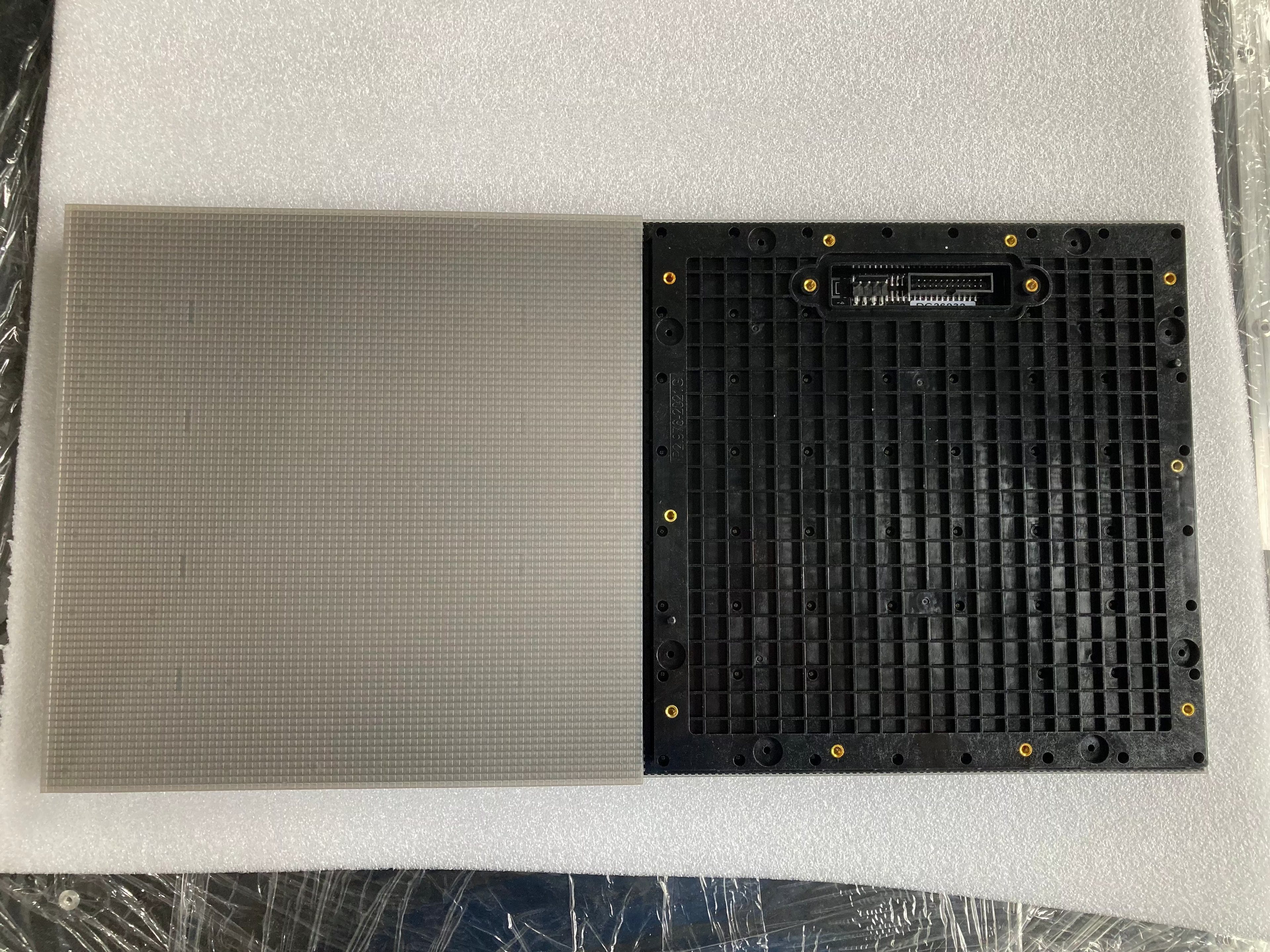

Available in P2.5, P2.976, and P3.91 pixel pitches, the system is built with robust steel cabinets in 500×500mm and 500×1000mm sizes. At just 77mm thick, each cabinet uses standard 250×250mm LED modules for straightforward installation and hassle-free maintenance.

Brightness & Refresh Rate

Brightness options range from 300 to 2000 nits, covering standard indoor environments to high-ambient-light venues. A 3840Hz ultra-high refresh rate ensures flicker-free, smooth visuals — ideal for live events, stage productions, broadcast, and camera-facing applications.

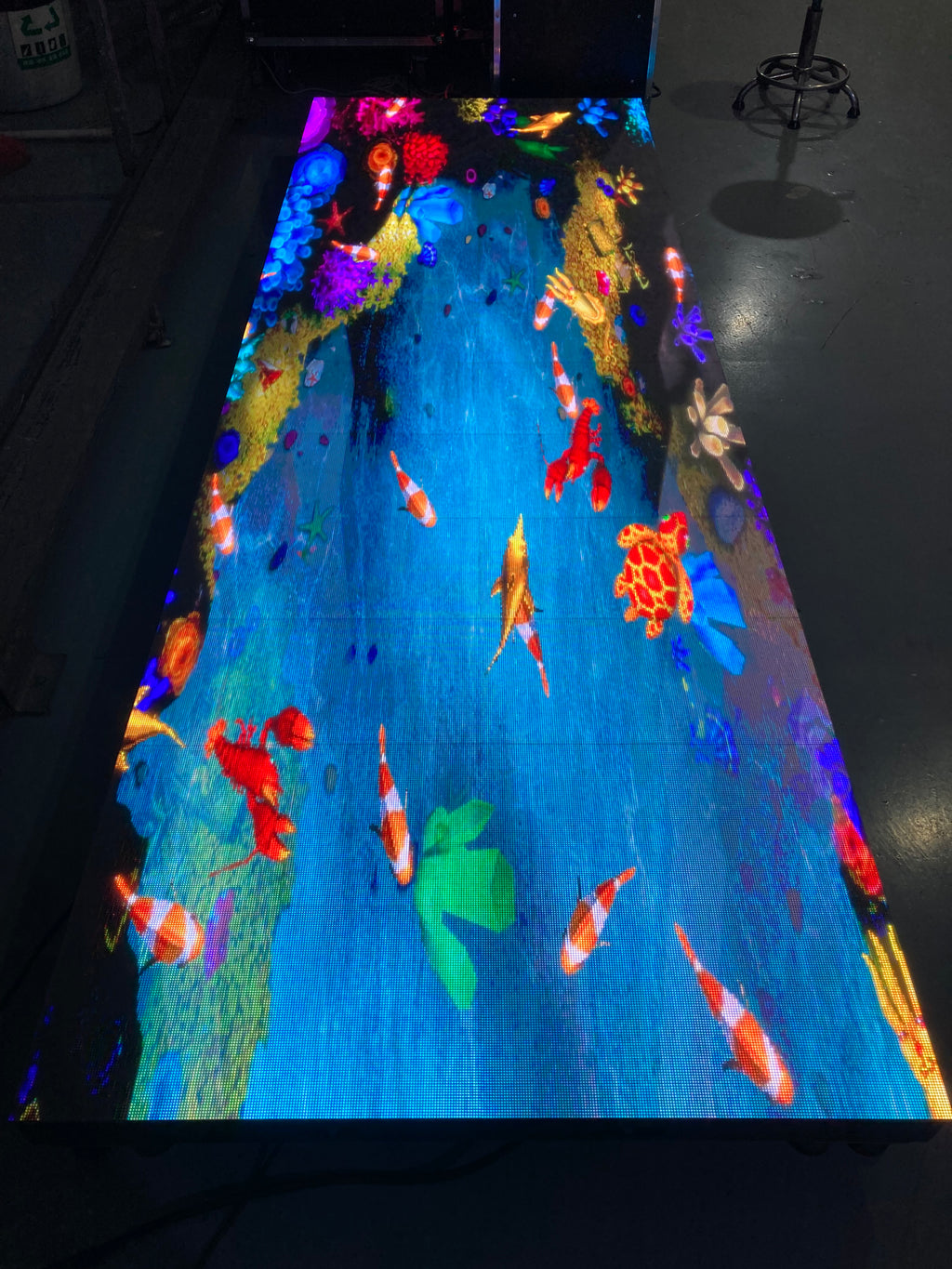

Interactive Version – Precision Sensing Technology

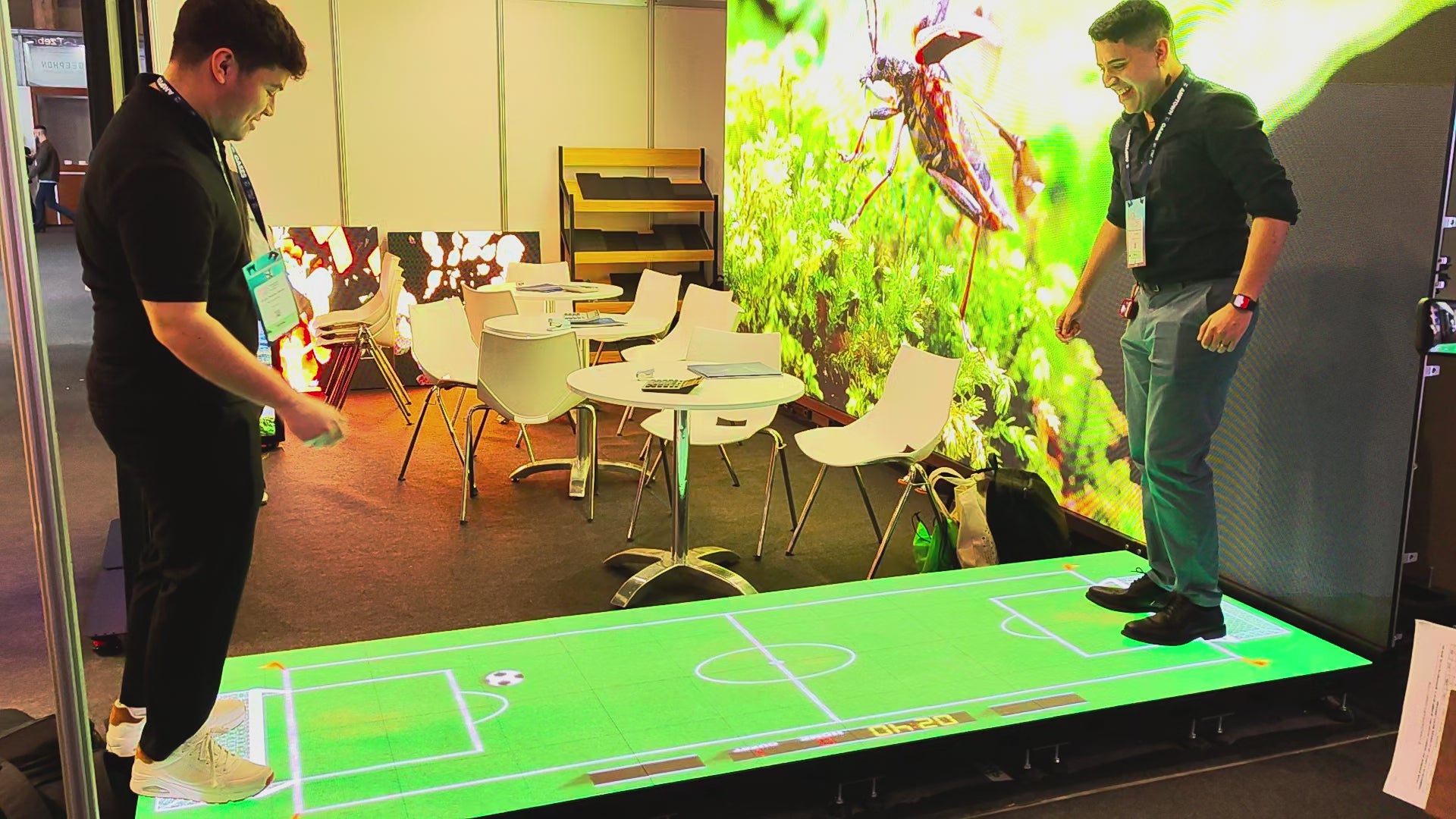

The interactive floor tile display features 8 built-in infrared sensor chips per module as standard, upgradeable to 16 chips per module for higher sensing density and improved interaction accuracy. This enables real-time response to movement and footsteps, creating truly immersive, reactive floor experiences.

The non-interactive version delivers the same premium visual performance without touch sensing — perfect for projects focused on high-quality floor visuals.

Structural Durability & Safety

Every module is protected by a PC protective cover with multiple internal support points that evenly distribute pressure and enhance impact resistance. The floor display supports loads of up to 2 tons per m², making it suitable for the most demanding high-traffic installations.

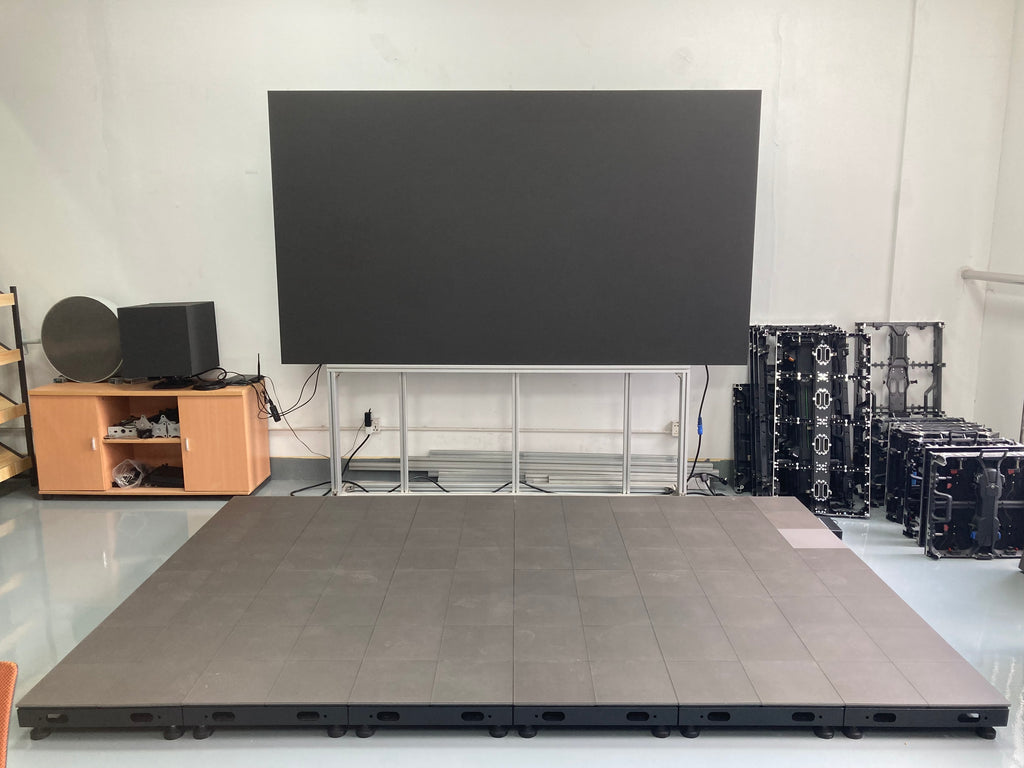

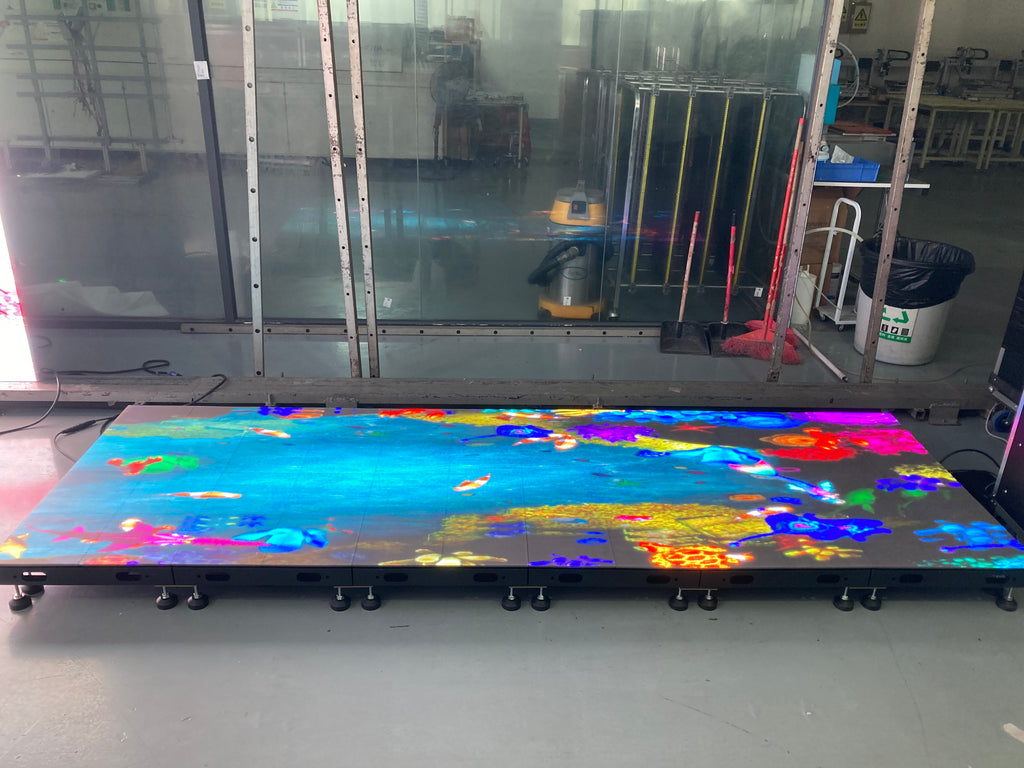

Each project ships with the corresponding number of metal support legs to securely connect and level every cabinet for a stable, professional finish.

Control System

Powered by the Mooncell control system for stable, reliable, and scalable operation across all installation sizes.

Applications

Dotcom LED floor tile displays are trusted across a wide range of industries and venues:

• Museums, Science Centers & Cultural Exhibitions
• Digital Art & Immersive Experience Centers
• Concert Stages & Live Event Productions
• Touring Shows & Broadcast Studios
• XR Virtual Production & E-sports Arenas
• Dance Floors, Nightclubs & KTV Venues
• Shopping Malls, Retail Flagships & Brand Activations

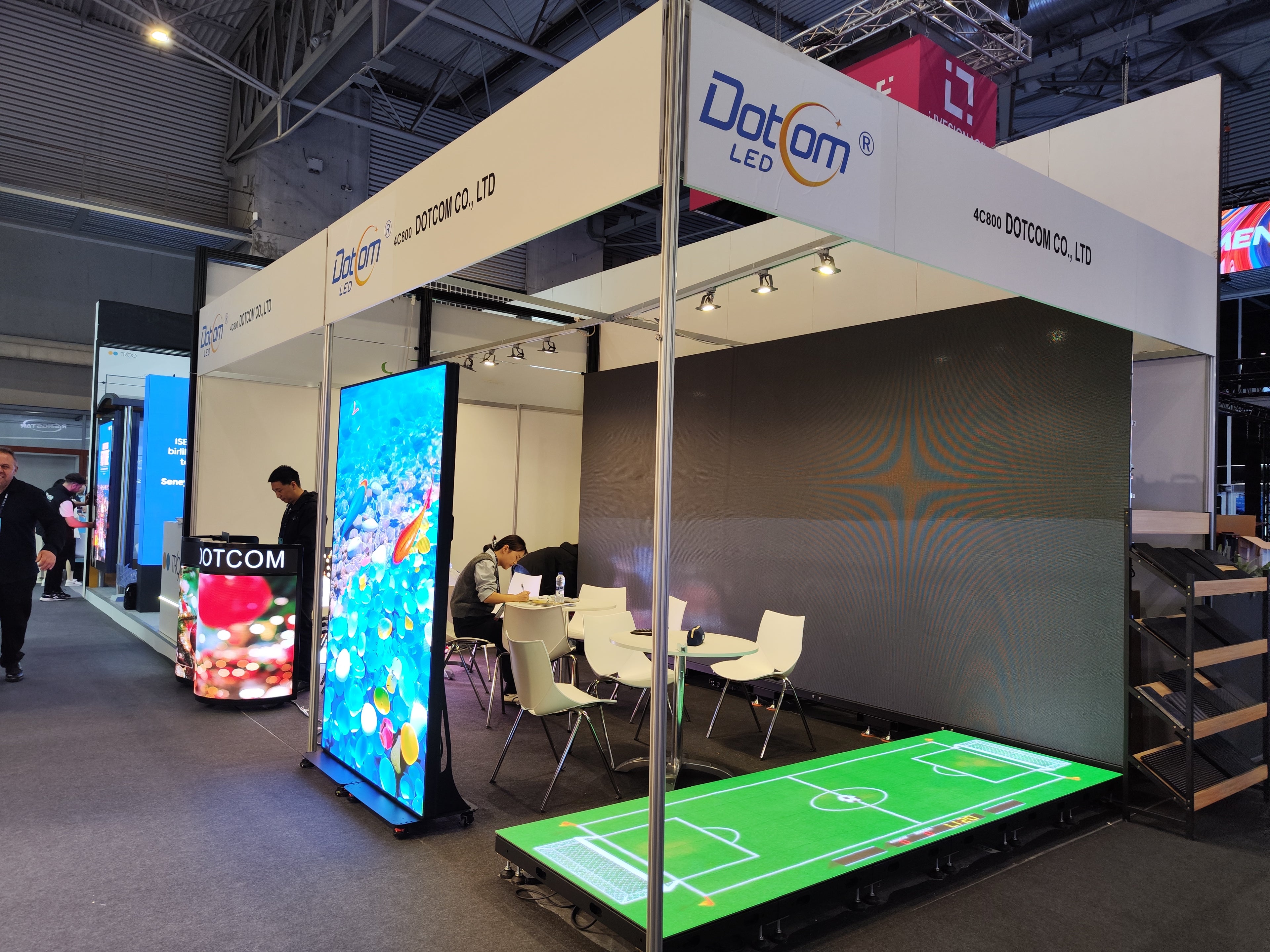

• Product Launch Events & Trade Show Booths
• Corporate Showrooms & Conference Centers
• Theme Parks, Amusement Parks & Children's Interactive Centers
• Hotel Ballrooms & Wedding Venues
• Sports Arenas & Stadium Fan Zones
• Airports & Transportation Hubs

Remote Technical Support

Professional remote assistance is available for system setup, software configuration, installation guidance, troubleshooting, and after-sales service — helping you complete every project efficiently, wherever you are in the world.
