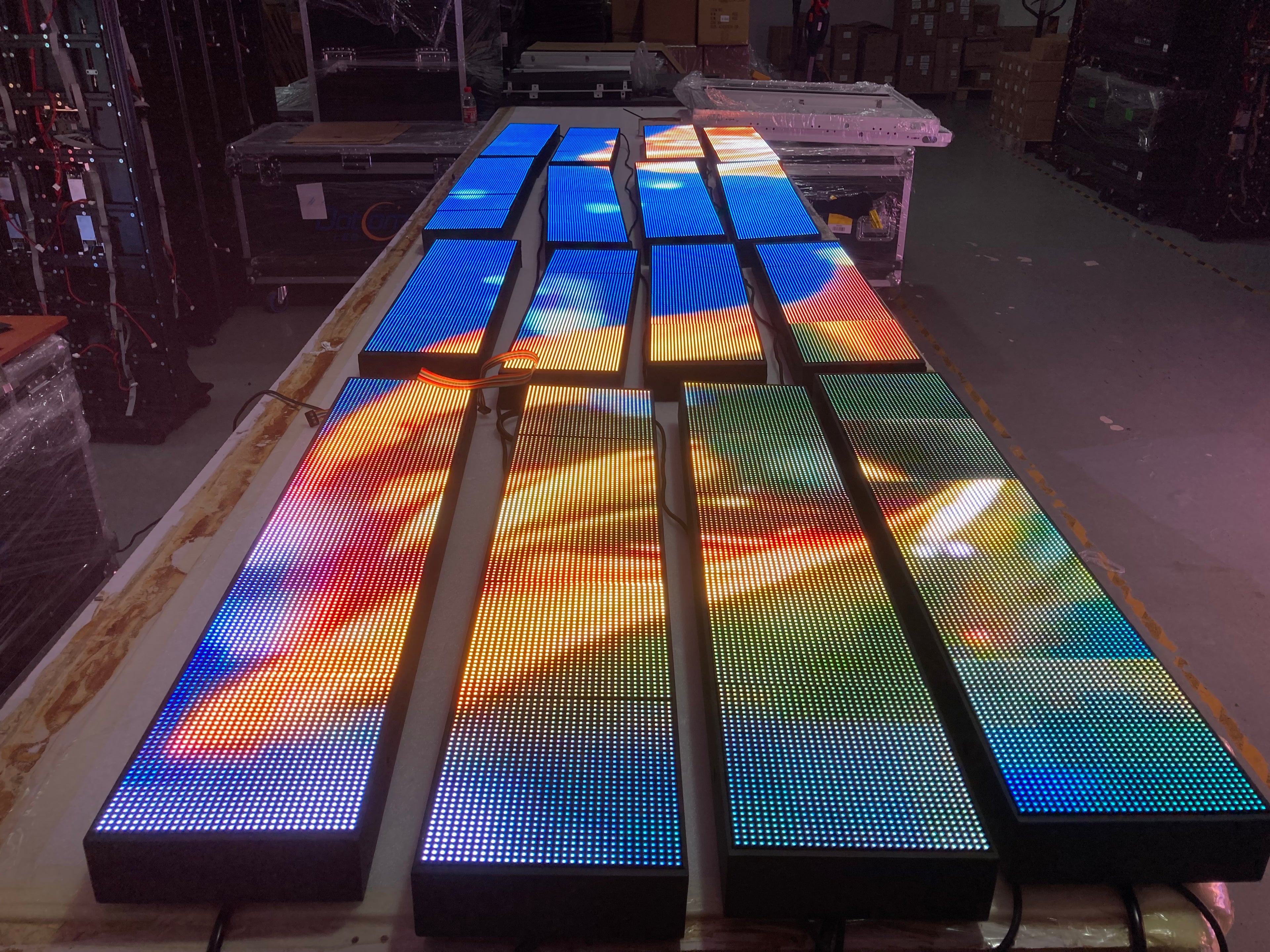

Custom Indoor Fixed LED Display — Iron Cabinet, Wall-Mounted
A cost-effective alternative to die-cast aluminum, Dotcom LED’s custom iron cabinet indoor fixed LED display delivers the same high-resolution visual performance in a lightweight, fabricated iron enclosure — built precisely to your wall dimensions and project requirements.
Designed for permanent wall-mounted installations, this display uses the same 320×160mm LED modules as our premium aluminum cabinet series, ensuring full compatibility with standard control systems and consistent image quality across your installation.
Key Specifications
- Cabinet Type: Custom fabricated iron (lightweight, powder-coated)
- Installation: Wall-mounted (fixed)
- Module Size: 320×160mm
- Cabinet Size: Fully custom — built to your wall dimensions
- Available Pixel Pitches: P1.25 / P1.53 / P1.86 / P2.0 / P2.5 / P3.076
- Brightness: 800–1200 nits (adjustable)
- Refresh Rate: ≥3840Hz
- Viewing Angle: 160° H / 140° V
- Signal Input: Compatible with Novastar & Colorlight control systems
- Power: Standard IEC connector, supports parallel distribution
- Color Depth: 16-bit grayscale
Pixel Pitch Options
- P1.25 — Ultra fine pitch; command centers, broadcast studios, financial trading floors (~1.2m min. viewing distance)
- P1.53 — Executive boardrooms, simulation centers, high-end briefing rooms (~1.5m)
- P1.86 — Conference rooms, corporate lobbies, exhibition halls (~1.8m)
- P2.0 — Meeting rooms, retail flagship stores, hotel lobbies (~2.0m)
- P2.5 — Shopping malls, auditoriums, university lecture halls (~2.5m)
- P3.076 — Airport terminals, ballrooms, large public venues (~3.0m)
Why Iron Cabinet?
- ✔ Lower cost — More economical than die-cast aluminum for large-format walls
- ✔ Fully custom dimensions — Fabricated to fit your exact wall size, no standard cabinet constraints
- ✔ Same LED modules — Identical 320×160mm modules as our aluminum series; same image quality
- ✔ Lightweight structure — Suitable for standard wall mounting without heavy structural reinforcement
- ✔ Seamless tiling — No bezels or gaps across the full display surface

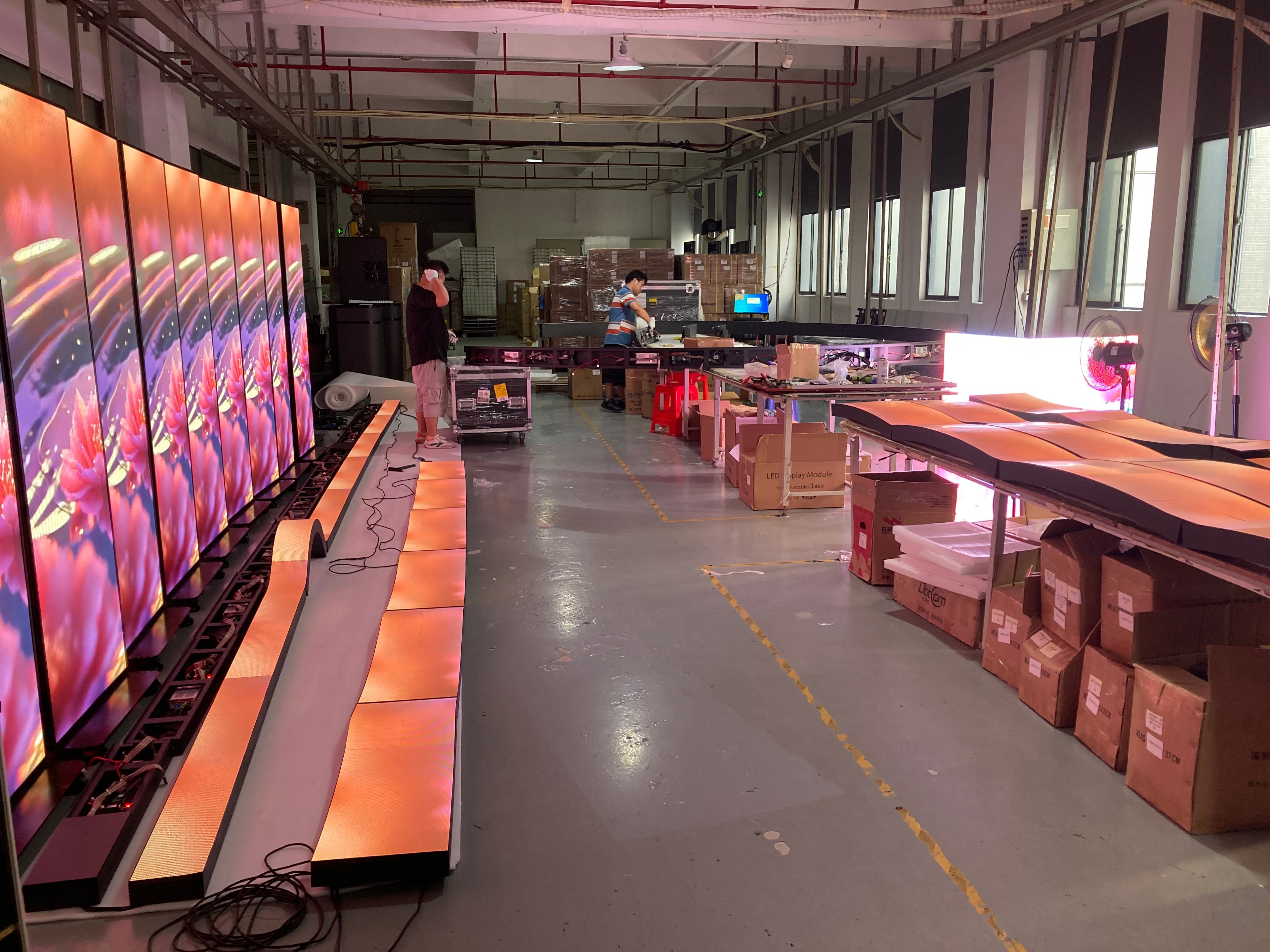

- ✔ Factory-direct — Custom fabricated and tested before shipment
Ideal Applications
- 🏪 Supermarkets & Retail Stores — Full-wall promotional displays and digital signage
- 🏛️ Exhibition & Trade Show Booths — Custom-sized backdrop LED walls
- 🏨 Hotel Lobbies & Banquet Halls — Permanent feature wall displays
- 🏬 Shopping Malls — Tenant signage and promotional video walls
- 🏢 Corporate Offices — Reception walls, meeting room displays, boardroom screens
- 🏫 Schools & Universities — Lecture hall displays and campus information boards
- 🏥 Hospitals & Clinics — Waiting area information displays
- ✈️ Airports & Transport Hubs — Departure boards and advertising displays
- 🏟️ Convention Centers — Stage backdrops and session signage
- 🎵 Entertainment Venues — Permanent stage and DJ booth displays
Iron vs. Aluminum Cabinet — Which Should I Choose?
| Feature | Iron Cabinet | Die-Cast Aluminum |
|---|---|---|
| Cost | ✓ Lower | Higher |
| Custom dimensions | ✓ Fully custom | Standard sizes |
| Weight | Slightly heavier | Lighter |
| Front service | Tool access | ✓ Tool-free magnetic |
| Image quality | ✓ Same modules | ✓ Same modules |
| Best for | Large walls, budget projects | Premium installs, tight spaces |
Frequently Asked Questions
Can the display be any size?
Yes — the iron cabinet is fabricated to your exact wall dimensions. We design the module layout to minimize any border gap and maximize the active display area.
Is front service available on iron cabinets?
Iron cabinets typically require tool access for module replacement. For installations where rear access is not possible, we recommend our die-cast aluminum front-service series.
What control system is used?
Compatible with Novastar and Colorlight systems, supporting HDMI/DVI input and remote content management via LAN or 4G.
What is the lead time?
Typical production lead time is 15–25 working days after design approval.
Order Process
- Share your wall dimensions, pixel pitch, and installation environment
- We provide a module layout drawing and quotation within 24 hours
- Upon approval, production begins — lead time 15–25 working days
- Full factory testing before shipment
- Installation support documentation included
Contact Dotcom LED with your wall size and requirements — we’ll design and build the perfect custom indoor LED display for your space.
