For outdoor LED display projects, system stability comes from the combination of LED modules, cabinet design, and power management.

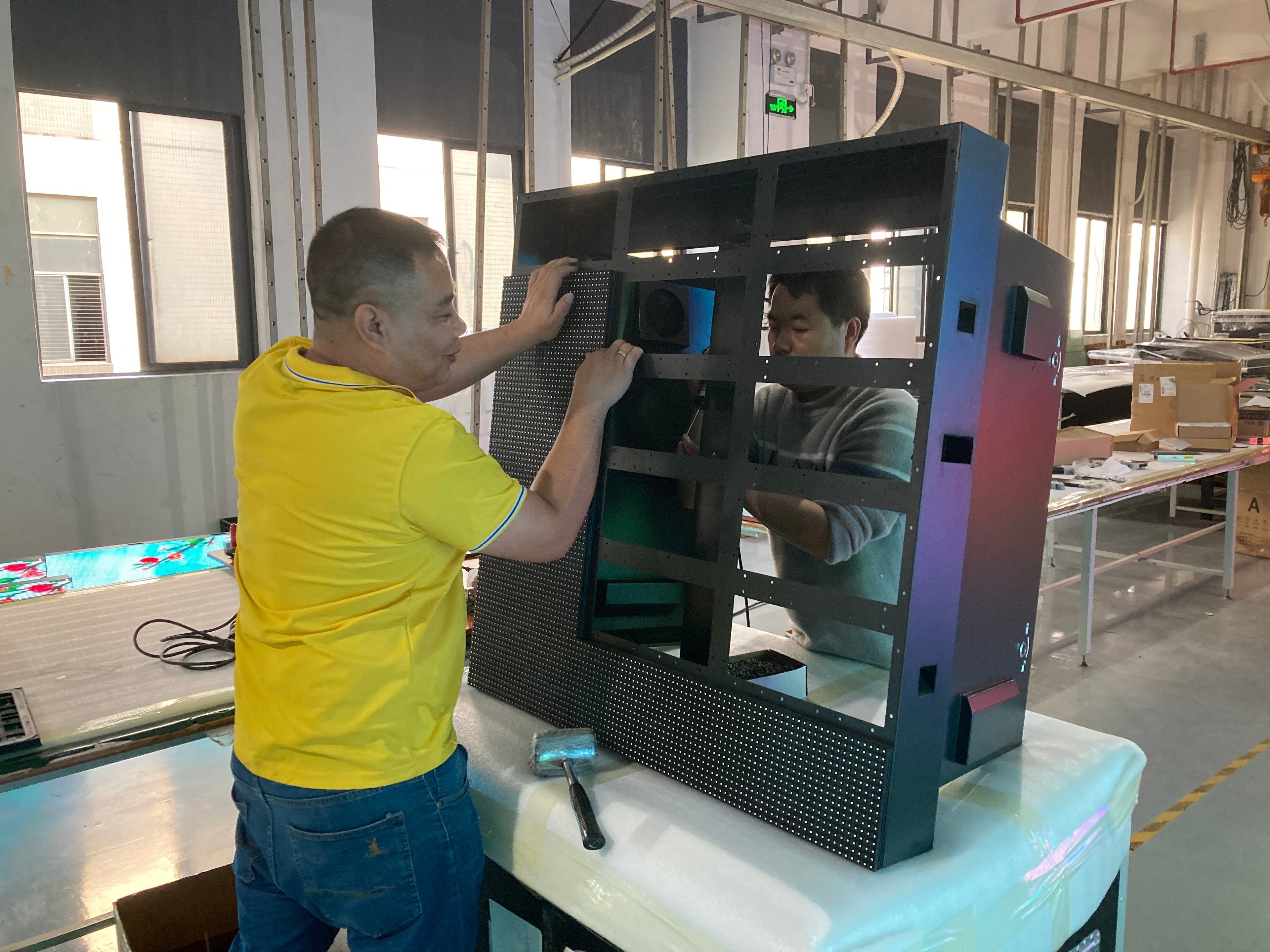

This P10 Outdoor LED Display features 320×160mm LED modules integrated into a 960×960mm outdoor cabinet, designed for reliable performance in fixed outdoor applications.
Technical Configuration:
- Pixel Pitch: P10, suitable for long-distance viewing environments
- Module Size: 320×160mm, supporting efficient installation and maintenance
- Cabinet Size: 960×960mm, designed for large-format outdoor display projects
- Power System: Dual power supply — 300W standard switching power supply + automotive-grade power supply — providing enhanced stability and reliability for continuous operation
- Protection: IP65 weatherproof rating
- Cabinet Material: Die-cast magnesium aluminum
For outdoor LED applications, die-cast magnesium aluminum cabinet solutions are highly recommended, offering:
- Lightweight structure for easier installation
- Excellent corrosion resistance for outdoor environments
- High precision and structural stability
- Better heat dissipation for long-term operation
Typical Applications:
- Outdoor advertising displays
- Building facade LED screens
- Stadium and sports venue displays
- Transportation information systems
- Commercial and public area LED screens
A reliable outdoor LED display is not only about pixel pitch and brightness, but also about the overall system design — including mechanical structure, power solution, and environmental adaptability.
Frequently Asked Questions
What is the recommended minimum viewing distance for a P10 outdoor LED display?
P10 (10mm pixel pitch) is optimized for long-distance viewing, with a recommended minimum viewing distance of approximately 10 metres. This makes it ideal for large-format outdoor advertising billboards, building facades, stadium perimeter screens, and roadside signage where audiences view the display from a distance. For closer viewing distances under 8 metres, P6.67 or P8 pixel pitches are more appropriate.
Why does this display use a dual power supply system?
The dual power supply configuration — combining a 300W standard switching power supply with an automotive-grade power supply — provides redundant power protection for continuous outdoor operation. If one power supply experiences a fault, the secondary supply maintains display operation without interruption. This is critical for permanent outdoor installations such as advertising billboards and building facade screens where downtime directly impacts revenue.
What are the advantages of a die-cast magnesium aluminum cabinet for outdoor use?
Die-cast magnesium aluminum cabinets offer four key advantages over standard steel cabinets for outdoor LED applications: significantly lighter weight (easier installation and reduced structural load), superior corrosion resistance in coastal and humid climates, higher dimensional precision for seamless panel splicing, and better passive heat dissipation to protect LED components during continuous high-brightness operation in hot climates.
Is the P10 outdoor display suitable for stadium and sports venue installations?
Yes. The 960×960mm cabinet format and P10 pixel pitch are well-matched for stadium perimeter boards, scoreboard displays, and large outdoor sports venue screens where viewing distances typically exceed 10–15 metres. The IP65 weatherproof rating ensures reliable operation in outdoor stadium environments across all weather conditions.
Does Dotcom LED export P10 outdoor displays internationally?
Yes. Dotcom LED exports P10 outdoor fixed LED displays to building owners, outdoor advertising operators, and AV contractors across the United States, Canada, Mexico, Colombia, Brazil, United Kingdom, Germany, Russia, UAE, Saudi Arabia, Australia, and Southeast Asia. Contact us for project-specific specifications, volume pricing, and compliance certifications.
